STRUCTURAL COMPARISON
Bamboo Poles for Wave Attenuation
Advantages:
- A nature-based solution for coastal protection.
- Generates income for local communities through procurement and installation.
- Low-cost, easy to implement, and labor-intensive.
- Acts as a barrier against certain fishing boats that may damage newly planted saplings.
- Efficient in trapping sediment behind the structure.
- Minimal impact on adjacent coastlines.
- Less impact on coastal ecosystems compared to other structures (according to the Department of Marine and Coastal Resources).
Disadvantages:
- Decomposing bamboo may contribute to water pollution.
- Once deteriorated, bamboo poles break at the soil-seawater interface, potentially damaging planted trees and becoming floating debris.
- Bamboo attracts barnacles, which may spread to adjacent areas.
- Large quantities of bamboo are required, potentially leading to deforestation and requiring significant labor for harvesting.
- Short lifespan (2-4 years) requiring continuous maintenance.
- Sediment accumulation may not reach the level needed for mangrove growth before bamboo poles deteriorate. Site conditions and sediment sources must be considered.
- A nature-based solution for coastal protection.
- Generates income for local communities through procurement and installation.
- Low-cost, easy to implement, and labor-intensive.
- Acts as a barrier against certain fishing boats that may damage newly planted saplings.
- Efficient in trapping sediment behind the structure.
- Minimal impact on adjacent coastlines.
- Less impact on coastal ecosystems compared to other structures (according to the Department of Marine and Coastal Resources).
Disadvantages:
- Decomposing bamboo may contribute to water pollution.
- Once deteriorated, bamboo poles break at the soil-seawater interface, potentially damaging planted trees and becoming floating debris.
- Bamboo attracts barnacles, which may spread to adjacent areas.
- Large quantities of bamboo are required, potentially leading to deforestation and requiring significant labor for harvesting.
- Short lifespan (2-4 years) requiring continuous maintenance.
- Sediment accumulation may not reach the level needed for mangrove growth before bamboo poles deteriorate. Site conditions and sediment sources must be considered.

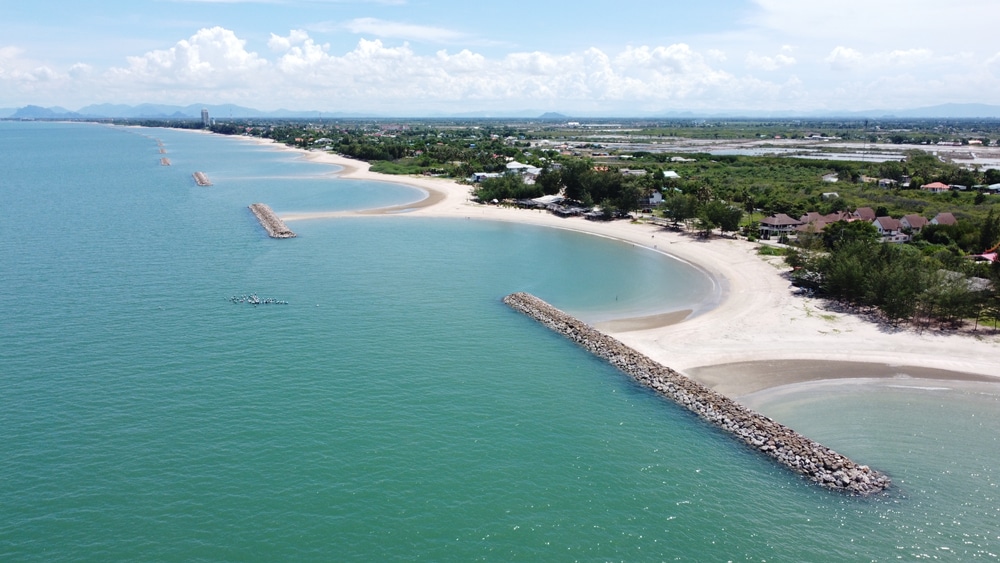

Breakwaters
Advantages:
- A well-supported engineering structure.
- Effectively reduces wave energy, depending on height and size.
- Promotes significant sediment deposition behind the structure.
- Can be constructed by local communities with proper engineering design.
Disadvantages:
- In muddy beaches, construction height is limited to 2.5 – 3.0 meters due to subsidence, reducing effectiveness.
- Offshore installations are impractical due to high foundation costs.
- May obstruct water circulation, potentially causing water quality issues and mangrove degradation.
- Medium to high cost, depending on design and foundation requirements.
- Potential adverse effects on adjacent coastlines.
- Alters coastal scenery.
- A well-supported engineering structure.
- Effectively reduces wave energy, depending on height and size.
- Promotes significant sediment deposition behind the structure.
- Can be constructed by local communities with proper engineering design.
Disadvantages:
- In muddy beaches, construction height is limited to 2.5 – 3.0 meters due to subsidence, reducing effectiveness.
- Offshore installations are impractical due to high foundation costs.
- May obstruct water circulation, potentially causing water quality issues and mangrove degradation.
- Medium to high cost, depending on design and foundation requirements.
- Potential adverse effects on adjacent coastlines.
- Alters coastal scenery.
Concrete Pile Installation
Advantages:
- Serves as an offshore wave attenuation barrier.
- Enhances sediment deposition behind the structure.
- Long lifespan.
- Low maintenance.
- Minimal subsidence effects.
Disadvantages:
- High cost, depending on design, row count, and pile length.
- Alters coastal aesthetics.
- Potential hazard to water navigation.
- Reduced efficiency in areas with longer wave periods and higher wave energy, making it more suitable for low-energy environments.
- Similar to seawalls, may cause wave reflection and impact adjacent coastal systems.
- Serves as an offshore wave attenuation barrier.
- Enhances sediment deposition behind the structure.
- Long lifespan.
- Low maintenance.
- Minimal subsidence effects.
Disadvantages:
- High cost, depending on design, row count, and pile length.
- Alters coastal aesthetics.
- Potential hazard to water navigation.
- Reduced efficiency in areas with longer wave periods and higher wave energy, making it more suitable for low-energy environments.
- Similar to seawalls, may cause wave reflection and impact adjacent coastal systems.
Sand Sausage (Geotextile Tubes)
Advantages:
- A hybrid approach combining natural and engineering solutions.
- Functions as an offshore wave barrier.
- Effectively reduces wave energy, depending on structure height.
- Provides sheltered areas for boats behind the structure.
- Semi-permanent and removable.
- Lower cost compared to permanent coastal protection methods.
Disadvantages:
- Limited lifespan, requiring maintenance or replacement, leading to high long-term costs.
- Potential subsidence and sand leakage, reducing effectiveness.
- In muddy beaches, leaked sand may impact coastal ecosystems.
- Alters coastal aesthetics.
- Potential negative effects on adjacent shorelines.
- Poor installation may result in displacement by waves.
- A hybrid approach combining natural and engineering solutions.
- Functions as an offshore wave barrier.
- Effectively reduces wave energy, depending on structure height.
- Provides sheltered areas for boats behind the structure.
- Semi-permanent and removable.
- Lower cost compared to permanent coastal protection methods.
Disadvantages:
- Limited lifespan, requiring maintenance or replacement, leading to high long-term costs.
- Potential subsidence and sand leakage, reducing effectiveness.
- In muddy beaches, leaked sand may impact coastal ecosystems.
- Alters coastal aesthetics.
- Potential negative effects on adjacent shorelines.
- Poor installation may result in displacement by waves.
Artificial Mangrove Roots
Advantages:
- A hybrid coastal protection approach incorporating nature-based solutions.
- Incorporates wood elements for a natural appearance.
- Lightweight, preventing subsidence.
- More cost-effective than breakwaters, sand sausages, or concrete piles.
- Creates immediate marine habitats, supporting ecosystem restoration.
- Acts as a barrier against certain fishing boats that may damage planted saplings.
- Designed with openings to allow small boats to navigate.
- Artificial roots facilitate both horizontal and vertical sediment accumulation, accelerating sedimentation and sand retention.
- Prolongs sediment retention behind the structure.
- Porous structure minimizes impact on adjacent shorelines.
- Less environmental impact compared to other coastal structures.
- Easily removable or adjustable for shoreline expansion.
- No Environmental Impact Assessment (EIA) required.
Disadvantages:
- Installation design varies based on site conditions, requiring detailed studies to optimize stability and coastal restoration.
- Moderate lifespan (~10 years), longer than bamboo structures.
- A hybrid coastal protection approach incorporating nature-based solutions.
- Incorporates wood elements for a natural appearance.
- Lightweight, preventing subsidence.
- More cost-effective than breakwaters, sand sausages, or concrete piles.
- Creates immediate marine habitats, supporting ecosystem restoration.
- Acts as a barrier against certain fishing boats that may damage planted saplings.
- Designed with openings to allow small boats to navigate.
- Artificial roots facilitate both horizontal and vertical sediment accumulation, accelerating sedimentation and sand retention.
- Prolongs sediment retention behind the structure.
- Porous structure minimizes impact on adjacent shorelines.
- Less environmental impact compared to other coastal structures.
- Easily removable or adjustable for shoreline expansion.
- No Environmental Impact Assessment (EIA) required.
Disadvantages:
- Installation design varies based on site conditions, requiring detailed studies to optimize stability and coastal restoration.
- Moderate lifespan (~10 years), longer than bamboo structures.
